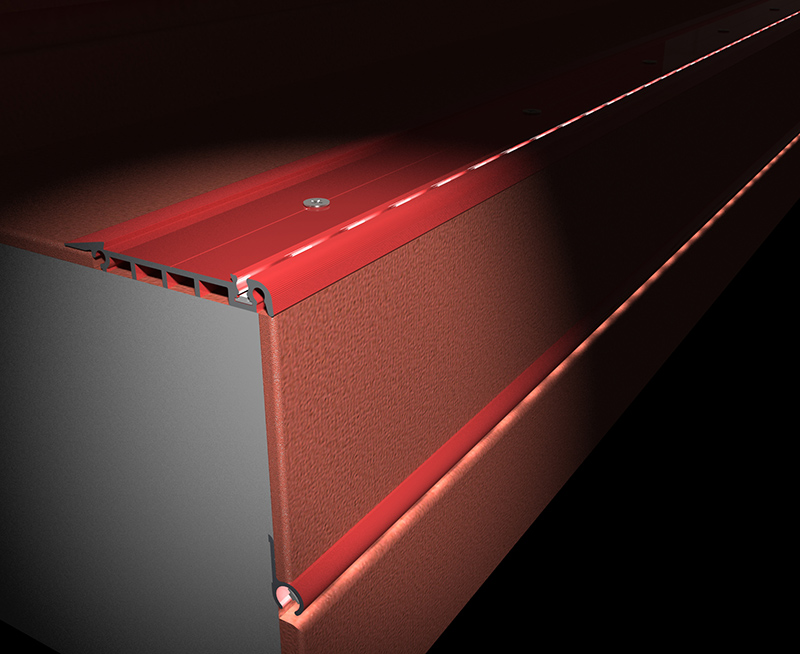

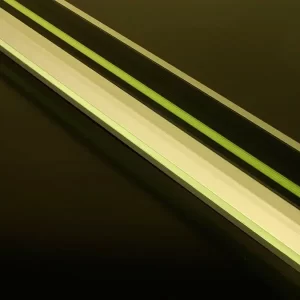

Description
PRODUCT CODE: WOES008
For full electronic specifications you will need to contact us.
The stairnosing electronics can be custom engineered to suit your specific requirements.
Generally we recommend 12V application along with modified power supply units, which eliminates power loss resulting in the lights being somewhat dimmer at the extreme end of runs.

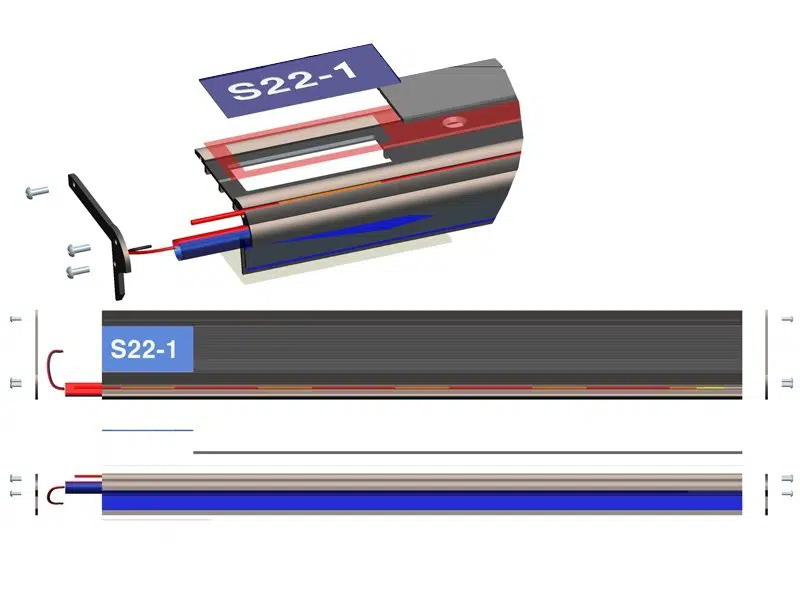

Each individual step light will be provided with two color matched end caps to the 90-degree end cuts. {Note that all angled cuts that differ to 90 degree, cannot be provided with “end caps”}

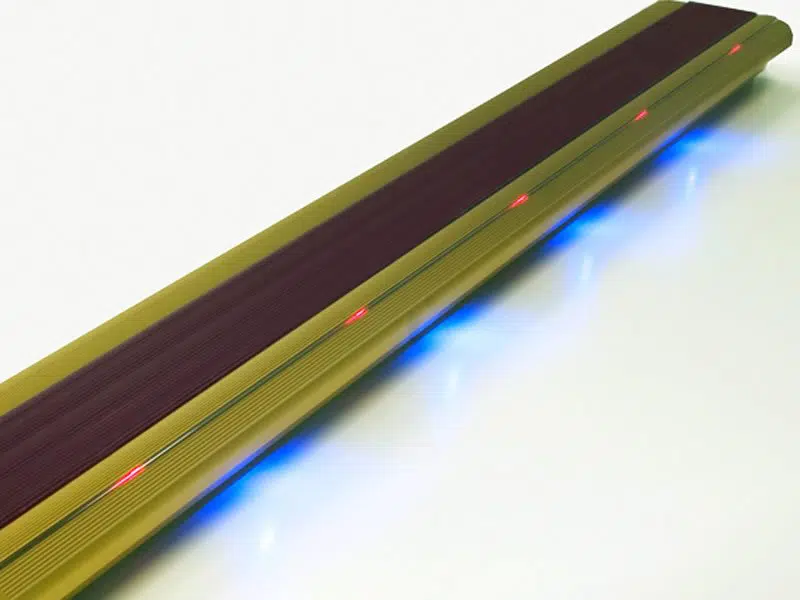

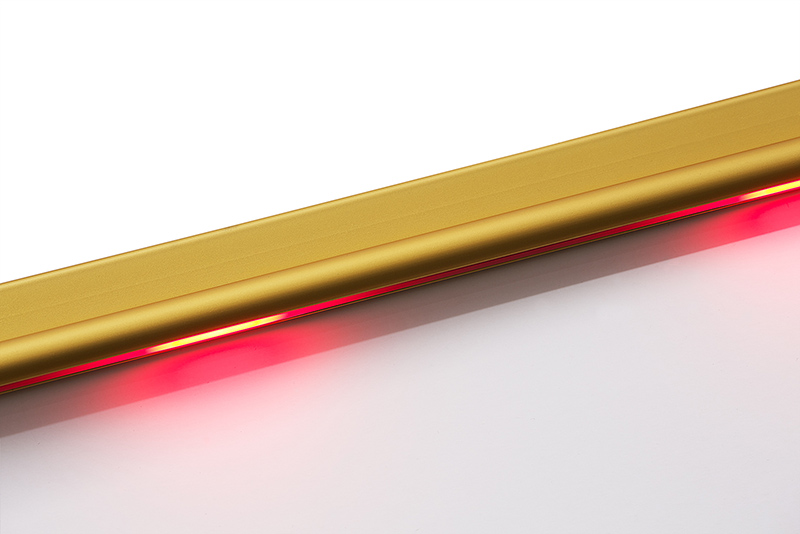

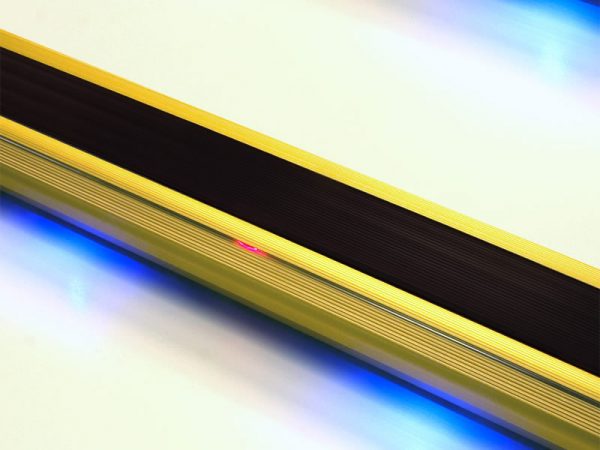

Our lights are very high quality LED’s, and can be color selected to your choice of RED – BLUE – WHITE – GREEN – AMBER.

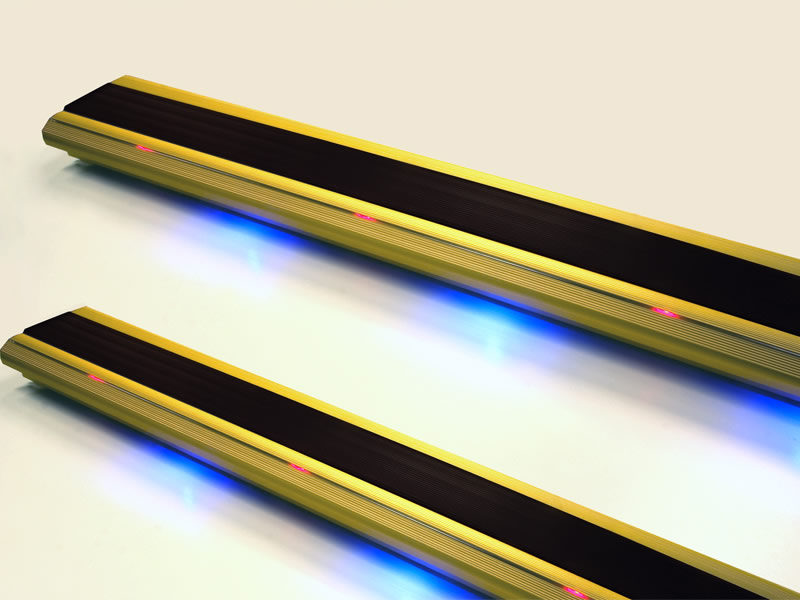

The lights are spaced at 150mm to 200mm centers, off-set between upper and lower sections
The stairnosing sizes are recommended to be in multiples of 200mm. EG
200mm – 400mm -600mm -800mm -1000mm and so on.
This is the most economical method of sizing; they can be up to 4.2 mt continuous lengths.

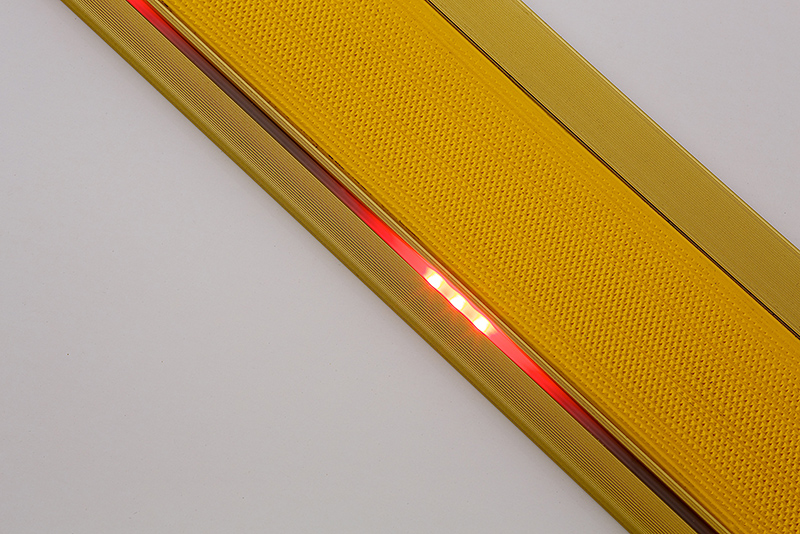

The profile and PVC antislip insert can be custom colored to suit; there may be quantity minimums applied in some cases.
SOLID aluminium profile alloy 6060 temper T5. Anodised to 25 um. (Heritage building specification).
NEW CODE COMPLIANT PROFILES

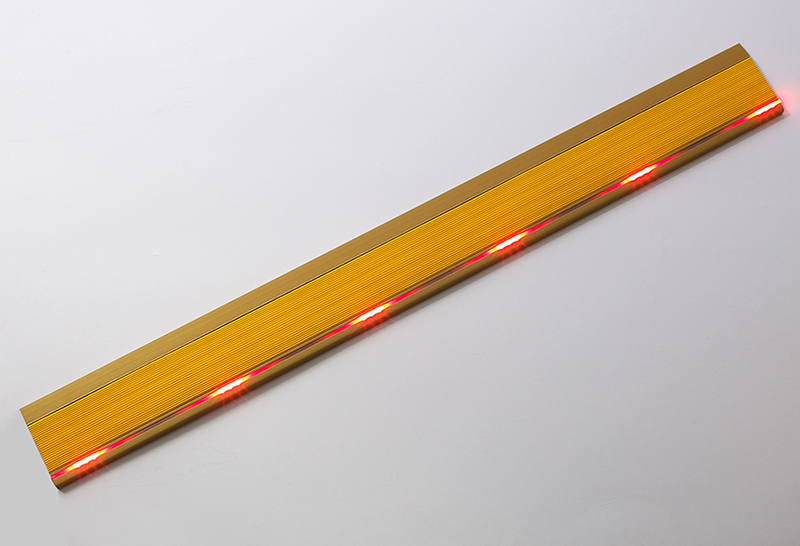

PRODUCT CODE: WOES009 {TREAD SECTION}
BCA code compliant as in AS1428
Standard anodising colors: Natural anodised – Black – Gold, can be custom colored.
Standard LED colors: Red – White – Green – Blue, can be custom colored.
Standard Insert colors: Black – Safety Yellow – Grey, can be custom colored.

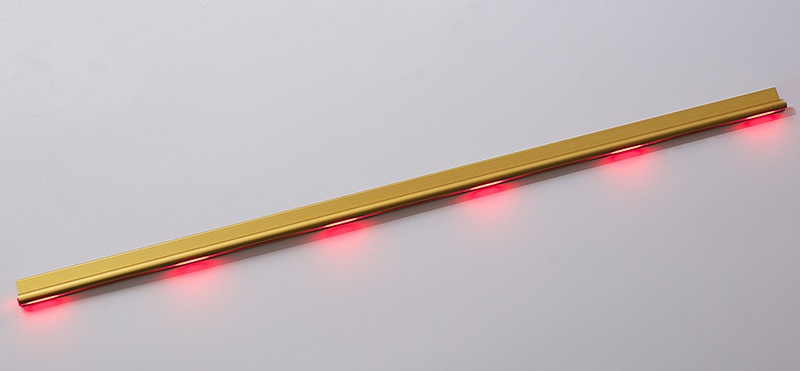

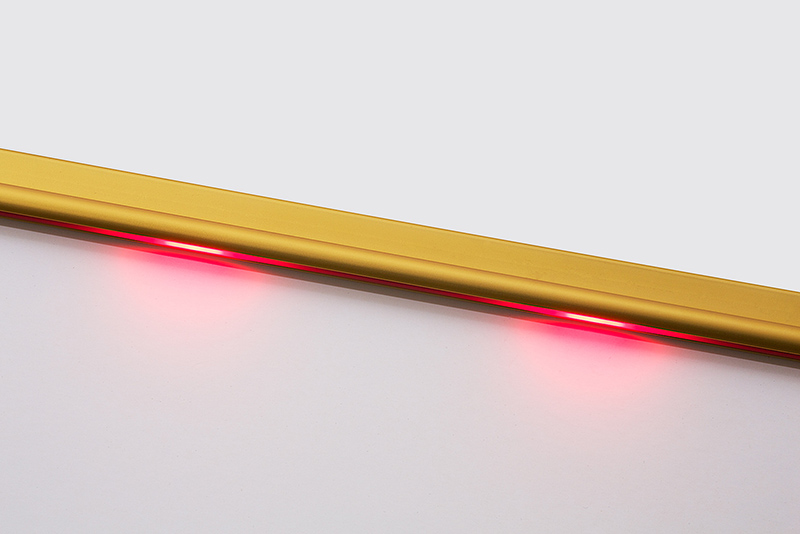

PRODUCT CODE: WOES010 {RISER SECTION}
BCA code compliant as in AS1428
Standard anodising colors:
Natural anodised – Black – Gold, can be custom colored.
Standard LED colors: Red – White – Green – Blue, can be custom colored.

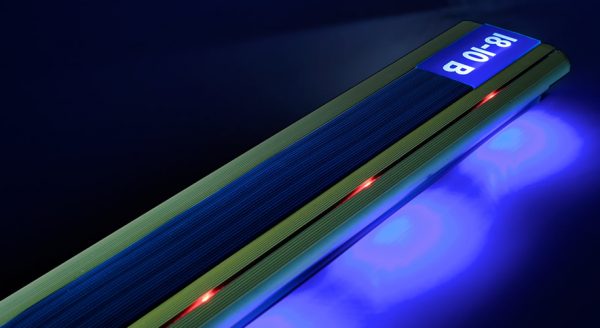

AUDITORIUM ROW AND SEAT IDENTIFICATION SYSYEM
PRODUCT CODE: WOES008-NUM
We have now finalised the development of our new AUDITORIUM ROW AND SEAT IDENTIFICATION SYSYEM.
The numbering configuration is customised to your exact requirements.
They are lit with the same high quality LED’s that we use in the stairnosing.
They can even be custom colored to suite, there may be some restrictions, we can advise on request.
The numbering lights can be run on the same, or separate wiring circuit if required; the lights for the numbers are 12V.
*Please note: In order to improve the quality and performance of the lighted stair nosing, specifications may change without notice.
